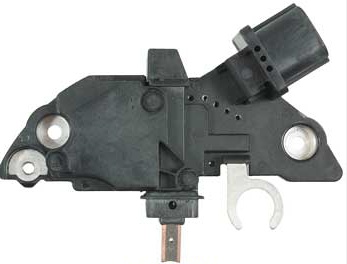

# IB236 - Voltage Regulator, Brush Holder Assembly for Bosch Alternators - 12 Volt, A-Circuit, IG-S-L-DFM Terminals, 14.4 Volt set point, 5 second LRC
|
|
Part #: IB236
|
|
|
|
IB236 - Voltage Regulator, Brush Holder Assembly for Bosch Alternators - 12 Volt, A-Circuit, IG-S-L-DFM Terminals, 14.4 Volt set point, 5 second LRC
Used On: Toyota
Replaces: Bosch F-00M-145-236, F-00M-145-305, F-00M-145-324, F-00M-145-865, F-00M-145-873
Unit Nos: Bosch 0-120-000-023, 0-124-0AD-39A, 0-124-0AD-39B, 0-124-315-015, 0-124-315-016, 0-124-315-024, 0-124-315-025, 0-124-315-029, 0-124-315-033, 0-124-315-034, 0-124-315-040, 0-124-325-071, 0-124-325-079, 0-124-325-085, 0-124-325-086, 0-124-325-123, 0-124-325-165, 0-124-325-167
Lester Nos: 11129
Notes: Active lamp function, with output.
Features: Transpo
External sense
Ignition activated but will lamp activate and stator start
Shorted field, lamp & choke protection
|
|
|
|
| | |
