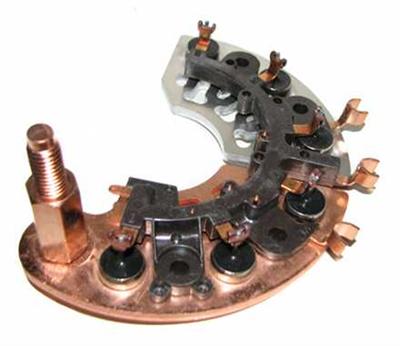

Part # D1501200 Extreme Heavy Duty 210 Amp Rated Bridge Rectifier w/ Copper Seat Sink and larger 8mm Battery Post for AD244, AD237, AD230 Alternators

Extreme Heavy Duty Bridge Rectifier For Delco AD230, AD237, and AD244 Series Alternators
This is our best AD series Bridge Rectifier
For: Delco AD237, AD244 Series 125-150 Amp Alternators Unit Nos: Delco 10480231, 10480234, 10480244, 10480270, 10480285, 10480298, 10480303, 10480327, 10480341, 10480350, 10480357, 10480368, 10480383, 10480390, 10480414, 10480428, 10480480, 10494492, 15056099, 15056100, 15062413, 15087022, 15087024, 15162839, 15744910, 15744913, 15750871, 15754097, 15754097A, 15768830, 15769253, 15769254, 25744162, 25744163, 25744165 Lester Nos: 8235, 8237, 8241, 8244, 8277, 8278, 8286, 8290, 8292

Features:
For up to 200 amp High Output Applications
Heavy Duty Solid Copper Positive Heat Sink
70 amp, 13mm press-fit avalanche diodes
Crimp-weld diode terminations
Improved lead frame conductors
Improved 8mm copper plated positive battery post (cannot use solid copper cause copper is to weak)
This Heavy Duty Bridge Rectifier may be installed in lower amperage units such as the 105 amp AD230 which will make it extra heavy duty
Note: to use this later design Bridge Rectifier with an early Design Voltage Regulator all you need to do is run a jumper wire from the battery post on the Rectifier to the power input spade connector on the voltage regulator.
Ref: 501-200
