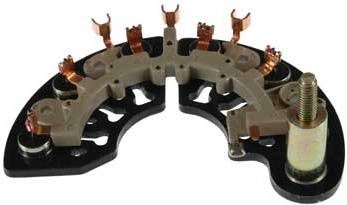

Part # DR4002HD - Heavy Duty Bridge Rectifier for AD230, AD237, AD244 Series Alternators. Early Design w/ 6mm Battery Post and 50 amp Diodes
|
|
Part #: DR4402HD
|
|
|
Heavy Duty Bridge Rectifier Early Design for Delco Type AD230, AD237, AD244 125-150Amp Alternators
Features:
- Heavy Duty
- 50A press-fit avalanche diodes
- Crimp-weld diode terminations
- M6 battery terminal has unique screw-down collar to accept early
& late design regulators
Heavy Duty Bridge Rectifier
For: Delco SD230, AD237, AD244 Series 125-150 Amp Alternators
Replaces: Delco 10494503 Unit Nos.: Delco 10311493, 10480231, 10480234, 10480244, 10480270, 10480285, 10480298, 10480303, 10480327, 10480341, 10480350, 10480357, 10480368, 10480383, 10480390, 10480414, 10480428, 10480480, 10494492, 15056099, 15056100, 15062413, 15087022, 15087024, 15162839, 15744910, 15744913, 15750871, 15754097, 15754097A, 15768830, 15769253, 15769254, 15788630, 25744162, 25744163, 25744165
Lester Nos.: 8235, 8237, 8241, 8244, 8277, 8278, 8286, 8290, 8292, 8492, 8493, 8494, 8495, 8496
Dimensions: 6mm x 1.0 Batt. Term. Notes: For version w/ M8 Battery Terminal use DR4403HD |
|
|
|
| | |
